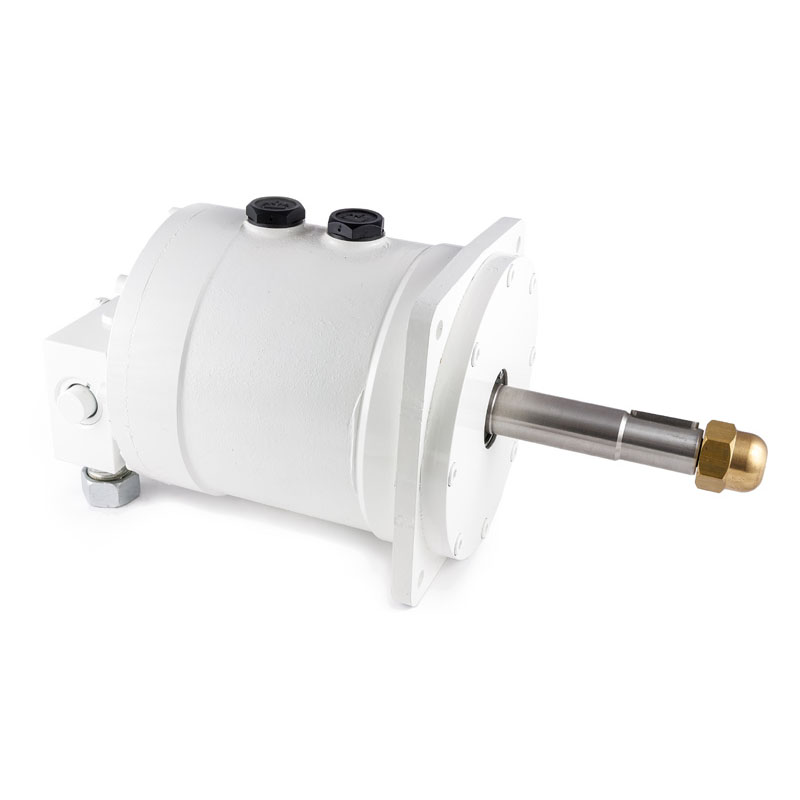

C. 9/150

The hydraulic helm pumps of this series are designed to manoeuvre large quantities of oil.
They are strong and complete of non-return valve, the body has a tank function.
Hydraulic transmitters with this cubic capacity are usually used for emergency manoeuvres on big systems or as main manual manoeuvre on vessels which have the necessity of using a steering wheel.
These transmitters are also used for small/medium vessels which require a manoeuvre with the minimum turns of the wheel.
CHARACTERISTICS
9 Internal pistons
150 cc capacity
Axial pistons system
Complete of integrated non-return valve which blocks reversibility.
Non-return valve and shaft seal easily accessible in case of replacement.
Shaft made of brass.
Body in aluminium.
3/4” threading for fittings 3/4” or 22mm (better with bigger tubing).
We recommend a 900mm as minimum diameter of the wheel.
ACCESSORIES UPON REQUEST
-installation flange
-column
